Nirixense is built on the 6+ year collaboration between our co-founders Prof. Siddharth Tallur and Prof. Sauvik Banerjee’s teams at IIT Bombay to develop affordable, made-in-India SHM and NDT solutions. We address the pressing need for timely and cost-effective maintenance of critical infrastructure by offering made-in-India, rugged, and affordable solutions.
Our install-and-forget, low-maintenance SHM products, enabled by edge AI and IoT, give insights into structural integrity. Our value-for-money NDT products enable early detection of cracks, corrosion, and other defects. We intend to cater to diverse sectors: concrete, metallic and composite structures. Our immediate target market is reinforced concrete infrastructure. We aim to create a unified hub within a fully integrated SHM ecosystem with our technology, streamlining everything from sensor deployment to data-driven decision-making.
CS 100: Concrete Scanner
Value for money rebar cover meter – high performance, without a high price tag!
CS 100 is a handheld rebar cover meter based on pulsed eddy current (PEC) for on-demand rebar localization and cover and diameter estimation in reinforced cement concrete (RCC) structures. It is ideal for structural audits, inspections and quality control of RCC structures.
CS 100 is available for beta testing!
Contact us for a price quotation, schedule a demo, and sign up for beta testing!
| Standards | BS 1881:204 |
| Rebar detection depth range | Up to 100mm |
| Accuracy of depth estimate | +/- 3mm |
| Accuracy of diameter estimate | Better than +/- 1 rebar size |
| Minimum distance between 2 rebars | 60mm |
| Rebar localization accuracy | +/- 10mm |
| Dimensions | 260mm x 155mm x 140mm |
| Encoder accuracy | +/- 1mm |
| Weight (with battery) | 1.15kg |
| Battery | Swappable, rechargeable battery. Life up to 3 hours for typical operation. |
| Carry case | Hermetic, water and dust-proof IP55 case |
| Patents | Patent no. 566412 (IN), provisional app. no. 202421066689 (IN) |
Check out demo videos of the beta test prototype below to see how easy it is to operate CS 100!
Concrete SHM solutions
Installs in minutes. Protects for years. No babysitting required.

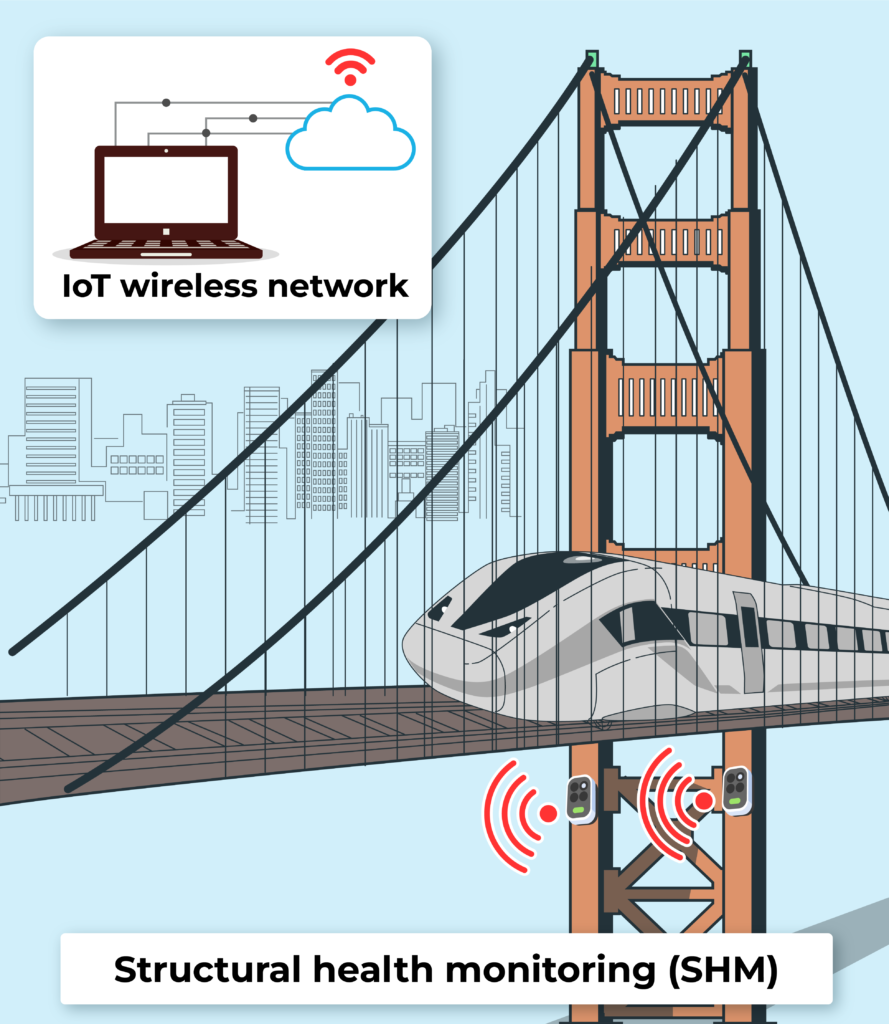

We are developing end-to-end, “install and forget” solutions for structural health monitoring (SHM), based on our novel sensor systems, IoT-enabled wireless sensor networks and expertise-backed data analysis. Our solutions are aimed at solving pain-points for structural engineers, consultants and asset owners alike. We offer smart sensing nodes that simplify installation and data gathering, as well as enable smarter structures through our built-in sensor solutions for permanent installation inside concrete.
Contact us to set up a meeting and discuss your SHM requirements and our solutions.
